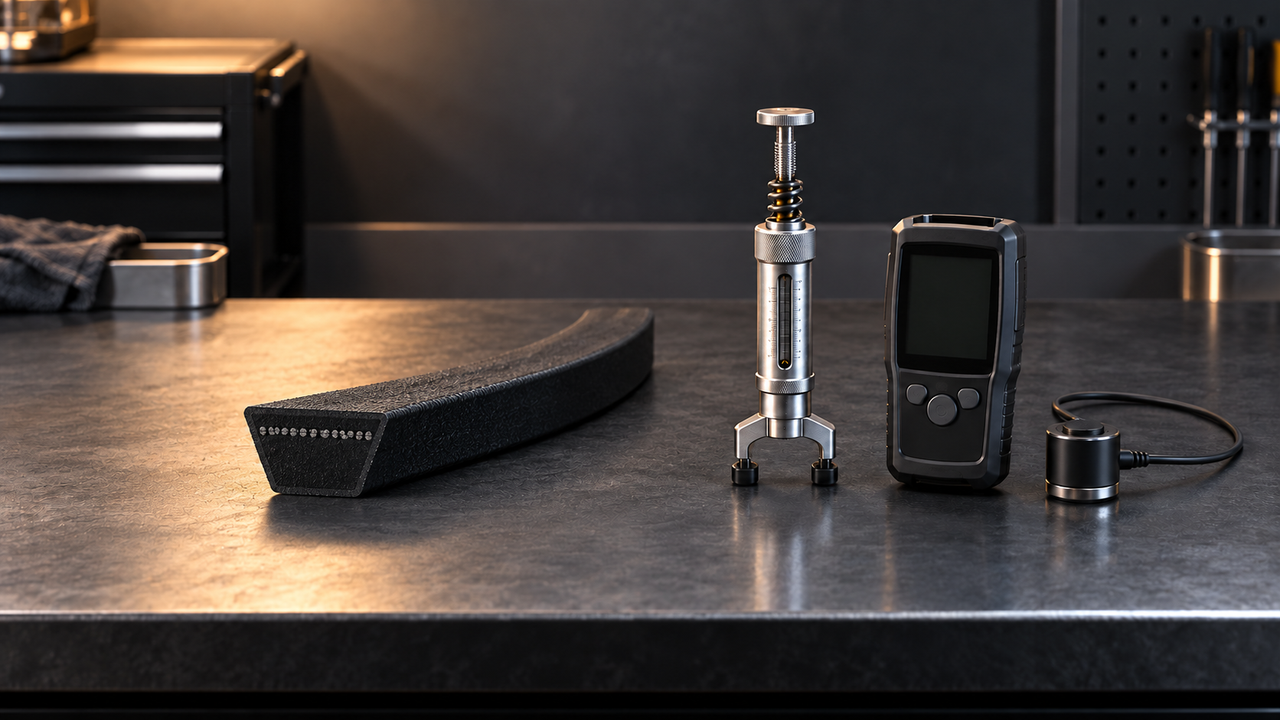

How to Tension a V-Belt: Force-Deflection and Sonic Methods

Correct tension is not one universal force, deflection, frequency, or multiplier. It is a value calculated or published for a specific belt family and drive geometry. This guide explains two measurement methods; the machine, belt, and instrument manufacturers’ procedures remain authoritative.

1. Make the drive safe before measuring

Follow the site energy-control procedure and applicable law. Stop the machine, isolate all electrical, pneumatic, hydraulic, gravitational, spring, flywheel, and other energy, apply the authorized locks or tags, prevent reaccumulation, and verify the de-energized state before the guard is removed.

Keep the drive isolated during measurement and adjustment. Rotate sheaves only by the machine or belt maker’s approved manual method, with the required risk controls—never by pulling the belt or placing fingers near a nip point. Reinstall and secure the guard before a powered test, and re-isolate before any further adjustment.

2. Obtain the exact tension target

Identify the exact manufacturer, product family, profile, nominal length, belt count, small and large sheaves, center distance, free span, speed, power or torque, duty, and installation condition. Use the current design manual, software, or application-engineering result for that drive.

Obtain the specified installation target and the manufacturer’s acceptable range for the chosen method. Do not substitute a generic deflection ratio, frequency band, initial-tension multiplier, or value copied from a different belt family. Installation and operating or retension values may differ.

3. Use the force-deflection method

Force-deflection checks the force needed to deflect a specified free span by a specified amount. The test force, deflection, span location, and acceptable range all come from the exact manufacturer procedure.

1. Confirm the drive is isolated and verified de-energized, then remove the guard under the site procedure.
2. Obtain the correct span, target deflection, test force or acceptable force range, and gauge orientation for the exact drive.
3. Seat the belt or matched set by safely rotating the isolated drive several revolutions, then recheck alignment and span.
4. Apply the specified force perpendicular to the span at the specified location and read the deflection without adding side load.
5. Adjust center distance only while isolated, remeasure until within the stated range, torque the mounts, recheck alignment, and secure the guard.

4. Use the sonic or frequency method

A compatible sonic meter measures the natural frequency of a stationary belt span and converts it to static tension using belt mass and geometry. In the Gates 550C unit system, T = 4 × S² × M × W × f² × 10⁻⁹, where T is newtons, S is span length in millimetres, M is unit mass in g/m/mm, W is belt width in millimetres or number of strands, and f is frequency in hertz. Do not mix this formula with other units or instruments.

Use only the belt and meter manufacturer’s mass data, target, span limits, and calibration procedure. Short spans, belt rigidity, pulley position, wind, background noise, and incorrect inputs can bias readings. The Gates 550C is not certified for explosion-risk areas; verify the rating of the actual instrument and site before use.

1. Isolate the drive, verify de-energization, and confirm the span is stationary and safe to access.
2. Enter the exact span length, unit mass, width or strand count, and any instrument-specific settings.
3. Seat the belt by safely rotating the isolated drive several revolutions and position the selected span consistently.
4. Excite the span as directed without striking other components, then take at least three valid readings.
5. Compare the stable result with the exact manufacturer target; repeat at another pulley position if the procedure requires it and investigate material variation.
6. Adjust only under isolation, then repeat the measurement, alignment, mounting-torque, guarding, and controlled-test checks.

5. Compare the two methods

6. Make readings repeatable

Use a calibrated instrument, the same defined free span and location, and consistent technique. For sonic work, record at least three stable readings and any required readings after rotating the isolated drive. Large differences can indicate an input, seating, groove, alignment, belt, or drive problem—not a reason to average blindly.

On a multiple-belt drive, install a complete manufacturer-compatible matched set and follow its set or per-belt measurement procedure. Do not mix new and used belts or manufacturers, and do not force every belt to look or deflect identically by eye; matched belts can show different visible sag while carrying the specified tension.

7. Diagnose low and high tension

Insufficient tension can permit slip, heat, noise, sidewall wear, glazing or hardening, and reduced load transmission. Confirm that the drive is correctly selected, the grooves are sound, alignment is correct, and contamination or overload is not the real cause before adding tension.

Excessive tension raises belt, hub, shaft, and bearing loads and can shorten component life. It is not a general cure for slip. If a drive cannot transmit its duty at the specified tension, diagnose selection, rating, wrap, sheaves, alignment, contamination, and operating load instead of exceeding the published range.

8. Follow the product-specific run-in schedule

Tension can change as a new belt seats, but the required run-in and retension schedule is product-specific. Some standard products require a powered run, shutdown, re-isolation, and tension check; some correctly tensioned maintenance-free families specify no conventional run-in retension.

Follow the exact belt and drive manufacturer schedule rather than a universal number of minutes or hours. Record the belt identification, target, instrument, inputs, initial reading, operating condition, recheck interval, adjustments, final reading, and technician.

9. Final tensioning checklist

Before returning the drive to service, confirm:

• Authorized energy isolation, lockout or tagout, stored-energy control, and de-energization verification are complete.
• The exact belt family, drive geometry, duty, and manufacturer tension procedure are identified.
• The correct installation or operating target and acceptable range are recorded.
• The gauge or meter is compatible, calibrated, and used within its site and instrument rating.
• The belt is seated, sheaves and grooves are serviceable, and alignment is within the applicable tolerance.
• Force-deflection inputs or sonic mass, span, width or strand inputs use the exact manufacturer units.
• Readings are repeatable and any abnormal variation has been investigated.
• Multiple belts form one compatible matched set and were checked by the maker’s procedure.
• Mounting hardware is torqued, the guard is secured, and the powered test will be controlled and observed safely.
• The product-specific run-in, re-isolation, inspection, and retension schedule is documented.

The correct tension is the manufacturer’s value for the actual belt and drive—not the tightest setting and not a value judged by feel. A safe, calibrated, repeatable measurement and a documented product-specific recheck are what make the result defensible.
