Never troubleshoot by touching a running drive
Only trained, authorized personnel should inspect or service the drive. Observe an operating drive only from an established safe position outside a compliant guard and under the site procedure. Before removing a guard, making contact, manually positioning the drive, cleaning, taking hands-on measurements or adjusting, stop the machine, isolate every hazardous energy source, apply the required locks or tags, control stored energy and reaccumulation, and verify de-energization.
A squeal is not a diagnosis. Squeal and chirp describe sounds; slip, heat and power loss describe different drive conditions. They can occur together or separately, but one observation does not establish the cause. The sound alone never selects the repair. Record the operating condition first, then confirm the drive with measurements and the exact data for your belt and your machine.

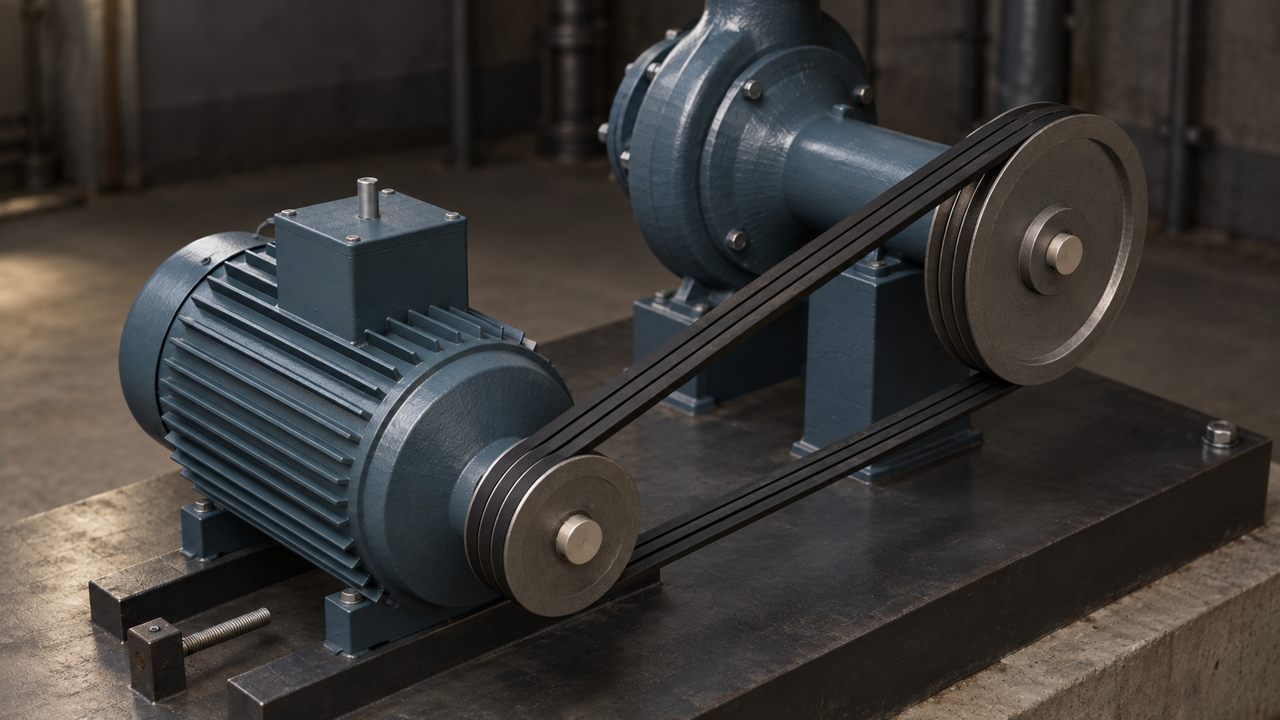

Identify the symptom and the operating condition
Record the five observations separately. Squeal describes a sustained high-pitched sound; chirp describes short, repeated sounds whose repetition may change with speed. Neither sound proves slip. Slip is relative sliding at the belt–sheave contact; dust, polished surfaces, belt displacement and reduced driven speed are clues to investigate, not proof of slip. Heat is a measured temperature rise under recorded operating conditions; glazing or hardening alone does not establish a temperature or its cause. Power loss concerns transmitted power, assessed with speed and torque or another approved power measurement. Reduced shaft speed or process output alone does not quantify power loss. One fault may produce several symptoms, so confirm each suspected condition before choosing a correction.
Symptom-to-diagnosis reference
Every row starts from an observation, not a diagnosis. Operating readings use only site-approved remote or fixed instruments from outside an intact guard. Guard removal, contact and hands-on measurements require verified isolation. Compare operating readings under comparable conditions and identify isolated readings separately; never recreate an unsafe fault or overload to obtain evidence.
| Observed condition | Possible cause classes | Safe verification | Decision boundary | Post-correction evidence |
|---|---|---|---|---|
| Squeal or chirp at start-up or peak load | Insufficient tension; contamination on the groove or sidewall; start-up torque or process load above the drive rating; worn or mismatched sheave grooves; a change in centre distance | From a safe position, record the load event. With the drive isolated, measure tension against the exact product target, gauge every groove, and check contamination, take-up travel, and the drive rating. | The sound selects neither a tension change, nor a dressing, nor a sheave replacement, nor a retension interval. Do not raise tension to silence it. | Record the guarded test at an authorized, comparable start-up or load condition, with the isolated tension reading and groove, contamination, and load findings retained. |
| Continuous squeal, or sidewalls hot and hardened after running | Sustained slip; worn sheave grooves; unintended centre-distance change; a drive undersized for the actual duty; a take-up that no longer holds position | Stop, isolate, and verify the safe state. Measure tension, check the groove profile and sidewall condition, confirm mount and take-up position, and compare the actual load and speed with the current drive design data. | Heat alone sets no replacement interval, compound, or temperature limit. Those come from the exact product family data. | Sidewall and sheave temperature, tension, groove condition, and load recorded at a comparable operating point before and after correction. |
| Slapping, span movement, or polished wear marks | Insufficient tension; angular or parallel misalignment; a mismatched or mixed set; an over-long span; pulsating or shock load; loose mounts or take-up hardware | Retain any safely observed span movement. With the drive isolated, check the complete set, measured tension, alignment by the approved method, span length, mount and take-up hardware, and the matched-set requirement. | A thrown or slipping belt is not a signal to fit a larger profile or a different construction. Changes to profile, construction or belt count need compatible sheaves and a complete design calculation. | Safely observed span behaviour and isolated wear findings retained with measured tension, alignment, and set composition. |
| Driven speed or output below target | Belt slip; an incorrect sheave ratio; a design or load error; capacity insufficient for the actual duty | Use approved remote or fixed instruments to record both shaft speeds and the actual load from outside the guard. Under verified isolation, inspect the geometry; verify corresponding datum or pitch diameters, ratio, service factor, arc of contact, length corrections, and the exact family rating. | A speed deficit alone does not justify a tension change. Check the ratio and centre-distance stability before adjusting tension. | Driver and driven speeds, actual power or torque, load, and the rating calculation recorded before and after correction. |
| Rubbing or scraping against a guard or adjacent part | Guard, cover, or adjacent-component interference; a shifted or deformed mount; debris between a belt span and the guard | With the drive isolated, inspect clearance and witness marks, and check mount and guard seating and fasteners. | Confirm what causes the contact, including incorrect fit or displaced components. Restore specified clearance and a compliant, secured guard before any restart; sound alone does not select a replacement. | Clearance measurement and witness-mark photographs retained with the guarded test result. |
| Grinding, roughness, or an abnormally loud drive with vibration | Bearing or shaft damage; debris in the groove; incorrect belt-to-sheave fit; worn sheaves; loose components; drive misalignment | With the drive isolated, inspect bearings, shafts, grooves, debris, mounting hardware, alignment, and the exact replacement designation for the machine and belt. | Noise and vibration do not identify a component. No bearing, belt, or sheave is replaced on an inference drawn from sound alone. | Bearing condition, alignment, groove condition, and the vibration and noise level recorded at a comparable operating point. |
- Possible cause classes
- Insufficient tension; contamination on the groove or sidewall; start-up torque or process load above the drive rating; worn or mismatched sheave grooves; a change in centre distance
- Safe verification
- From a safe position, record the load event. With the drive isolated, measure tension against the exact product target, gauge every groove, and check contamination, take-up travel, and the drive rating.
- Decision boundary
- The sound selects neither a tension change, nor a dressing, nor a sheave replacement, nor a retension interval. Do not raise tension to silence it.
- Post-correction evidence
- Record the guarded test at an authorized, comparable start-up or load condition, with the isolated tension reading and groove, contamination, and load findings retained.
- Possible cause classes
- Sustained slip; worn sheave grooves; unintended centre-distance change; a drive undersized for the actual duty; a take-up that no longer holds position
- Safe verification
- Stop, isolate, and verify the safe state. Measure tension, check the groove profile and sidewall condition, confirm mount and take-up position, and compare the actual load and speed with the current drive design data.
- Decision boundary
- Heat alone sets no replacement interval, compound, or temperature limit. Those come from the exact product family data.
- Post-correction evidence
- Sidewall and sheave temperature, tension, groove condition, and load recorded at a comparable operating point before and after correction.
- Possible cause classes
- Insufficient tension; angular or parallel misalignment; a mismatched or mixed set; an over-long span; pulsating or shock load; loose mounts or take-up hardware
- Safe verification
- Retain any safely observed span movement. With the drive isolated, check the complete set, measured tension, alignment by the approved method, span length, mount and take-up hardware, and the matched-set requirement.
- Decision boundary
- A thrown or slipping belt is not a signal to fit a larger profile or a different construction. Changes to profile, construction or belt count need compatible sheaves and a complete design calculation.
- Post-correction evidence
- Safely observed span behaviour and isolated wear findings retained with measured tension, alignment, and set composition.
- Possible cause classes
- Belt slip; an incorrect sheave ratio; a design or load error; capacity insufficient for the actual duty
- Safe verification
- Use approved remote or fixed instruments to record both shaft speeds and the actual load from outside the guard. Under verified isolation, inspect the geometry; verify corresponding datum or pitch diameters, ratio, service factor, arc of contact, length corrections, and the exact family rating.
- Decision boundary
- A speed deficit alone does not justify a tension change. Check the ratio and centre-distance stability before adjusting tension.
- Post-correction evidence
- Driver and driven speeds, actual power or torque, load, and the rating calculation recorded before and after correction.
- Possible cause classes
- Guard, cover, or adjacent-component interference; a shifted or deformed mount; debris between a belt span and the guard
- Safe verification
- With the drive isolated, inspect clearance and witness marks, and check mount and guard seating and fasteners.
- Decision boundary
- Confirm what causes the contact, including incorrect fit or displaced components. Restore specified clearance and a compliant, secured guard before any restart; sound alone does not select a replacement.
- Post-correction evidence
- Clearance measurement and witness-mark photographs retained with the guarded test result.
- Possible cause classes
- Bearing or shaft damage; debris in the groove; incorrect belt-to-sheave fit; worn sheaves; loose components; drive misalignment
- Safe verification
- With the drive isolated, inspect bearings, shafts, grooves, debris, mounting hardware, alignment, and the exact replacement designation for the machine and belt.
- Decision boundary
- Noise and vibration do not identify a component. No bearing, belt, or sheave is replaced on an inference drawn from sound alone.
- Post-correction evidence
- Bearing condition, alignment, groove condition, and the vibration and noise level recorded at a comparable operating point.
Source: SQUAREROPE Technical Team; confirm every candidate cause against the exact belt, sheave, and drive manufacturer data
Use the findings to update the drive-specific V-belt preventive maintenance schedule. It explains how to set guarded operating rounds and isolated inspections from product instructions, duty and condition trends, and which changes require renewed diagnosis.
Use a safe diagnostic sequence
Work in this order so the symptom is recorded before the drive is disturbed, and so no step is taken on an unverified cause:
- From a safe position outside the intact guard, record when the symptom appears: start-up, shutdown, peak load, continuous running, after maintenance, or after contamination. Record only safely visible conditions and approved remote or fixed instrument readings. Do not reach through the guard, touch it to judge vibration, or approach moving parts for a reading; inspect hidden sidewalls only after isolation.
- Stop the machine and apply the site hazardous-energy-control procedure. Isolate every hazardous energy source, apply the required locks or tags, control stored energy and reaccumulation, and verify de-energization. Only after that verification does any guard removal, contact, manual positioning, cleaning, hands-on measurement, or adjustment begin.
- Confirm the exact belt and drive identification and its history: the complete designation, manufacturer and product family, matched-set information, installed length basis, sheave groove profile, machine make and model, and every recent replacement or adjustment.
- Preserve the as-found condition before disturbing it. Photograph the complete belt set, sheaves, idlers, take-up, mounts, guard, debris, and contamination, and retain a damaged belt for comparison.
- Measure tension with a calibrated instrument using the method and target specified for the exact belt and drive, then check angular and parallel alignment by the approved method and inspect every groove with the correct gauge.
- Identify the contamination source and its ingress path, stop the leak, and remediate only with the cleaning method and chemistry that the exact product family and the equipment manufacturer approve.
- Verify the actual duty using retained safe operating readings and records: both shaft speeds, running power or torque, start method, daily hours, shock or pulsation, and real process load. Compare these with the inspected support and bearing condition, application capacity, and exact-product installation, matching and run-in requirements. Do not energize the isolated drive to fill a missing reading; escalate for an authorized guarded test plan.
- Correct only the cause the evidence confirms. The correction may be correct tension, leak control, approved cleaning, alignment, mount or bearing repair, a compliant guard repair, replacement of worn sheaves, the exact matched replacement set, or an engineered drive redesign.
- Restore and secure the guard, clear tools and personnel, notify affected people, restore energy under the site procedure, and perform a controlled restart observed from a safe position. Record the post-correction evidence without recreating an unsafe fault or overload. Stop, re-isolate, apply the required locks or tags, control stored energy and re-verify isolation before any further hands-on work.
Measure tension and follow the exact-product run-in rule
Low tension can permit slip, while excessive tension adds load to shafts and bearings and can create other noise or damage. There is no universal tension, deflection, frequency, or installation multiplier. Do not approve tension by thumb pressure, by sound alone, or by a value inherited from another machine. Use the exact manufacturer target with a compatible calibrated instrument. If positioning or rotation is required, keep the drive isolated and use only the approved manual method and risk controls; never pull the belt or place fingers near a nip point. Recheck as instructed.
Run-in and retensioning are product-specific and are stated in the exact product family instructions. Some families require a defined run followed by shutdown, re-isolation, inspection, and retensioning; some correctly tensioned families specify no conventional run-in retension. That does not waive inspection or the controlled test. Missing or conflicting instructions are not permission to improvise — stop and escalate to the equipment or belt manufacturer before the drive returns to service. No fixed run-in or retension interval is published here.
Tension is one correction among several, and it only holds if the installation itself is correct. The installation, take-up, alignment, and run-in practice is covered in V-belt installation best practices, which also explains why measured tension has to be rechecked once the mounts, take-up, and sheave seating are settled.
Inspect sheaves, fit, and alignment
A V-belt must transfer load through the groove sidewalls without bottoming. Use the correct groove gauge to distinguish wear, contamination, and an incorrect belt-to-sheave combination. Inspect every sheave and replace only those that are damaged or outside the manufacturer limit; do not keep every sheave without inspecting, and do not replace every sheave without inspecting.
Cross-section features and inspection checkpoints:
- (1) — Sidewall contact: The belt transmits torque through friction on the angled groove walls. The illustrated belt sits slightly above the rim; verify the specified fit for the exact profile.
- (2) — Root clearance: A gap separates the belt underside from the groove root. The belt must not ride on the bottom.
- (3) — Dished sidewalls: Concave wear changes the contact profile. Dashed lines show the original groove; use the correct gauge to verify wear and exclude an incorrect belt–sheave combination.
- (4) — Bottom contact: The belt has dropped to the groove root and lost the intended sidewall fit. This can contribute to slip; sound alone does not confirm the cause.
- (5) — Groove gauge: Above, the matching gauge meets the groove walls; below, light gaps reveal dishing. After isolation and cleaning by the approved method, compare the measured gaps with the exact manufacturer wear limit before deciding on replacement.
Check angular and parallel or offset misalignment with the equipment or belt maker’s procedure and tolerance. A straightedge across sheave faces is valid only when the groove-to-face offsets are identical; otherwise compensate for the geometry or use a suitable laser or manufacturer method. An application label does not widen a generic tolerance.
Remove contamination without inventing a solvent rule
Oil, grease, coolant, chemicals, rust, paint, dust, and debris can change contact, damage the belt, or create noise. Stop the leak or the ingress path first. Belt dressing is never a corrective treatment and is not applied here. Clean the sheaves by the equipment and belt maker’s approved method, leave the grooves clean and dry, and replace a belt that is outside the service criteria.
Do not choose a cleaning solvent or a replacement compound from a generic material label. Verify the exact belt family’s chemical and temperature limits and the equipment manufacturer’s cleaning instructions. “Oil resistant” does not establish compatibility with immersion, with a solvent, or with every coolant.
Verify load, speed, and drive capacity
A jam, a seized driven component, high starting torque, a changed process load, or a drive undersized for the actual duty can all produce slip and power loss. Clear the mechanical fault, then verify actual running power or torque, start method, service factor, speeds, the small-sheave diameter, ratio, arc of contact, belt length, and the corrected rating for the selected family.
Do not move to a larger profile, or from a classical to a narrow-wedge construction, by rule of thumb or by judgement. A different profile needs compatible sheaves and a complete manufacturer design calculation. A measured speed deficit also requires checking the sheave ratio and centre-distance stability, not tension alone. The drive is reviewed as a system before any correction is chosen.
Correct the confirmed cause and perform a controlled restart
The correction must match the confirmed cause, and the drive is judged as a whole rather than part by part. If replacement is required, follow the exact manufacturer’s belt or complete-set replacement and matching rule. Do not assume that mixed ages, brands or nominally similar belts form an acceptable set. Create the specified installation slack and fit the belt without forcing, prying or rolling it onto a sheave.
After the work, torque the mounts to the machine builder’s value, recheck alignment and tension, clear tools and personnel, reinstall and secure the guard, and restore energy under the site procedure. Observe the guarded test from a safe position. If noise, heat, vibration, or speed is still abnormal or is worse than before, stop and isolate the drive again — do not add tension while it runs, and escalate with the record.
Record evidence before closing the work order
Retain these values with the maintenance record:
- Exact belt manufacturer, product family, complete designation, quantity, and matched-set information, with the machine make and model.
- When the symptom appeared, and the associated load, start, speed, temperature, vibration, smell, dust, tracking, and sidewall observations.
- Measured tension, instrument, target and its source, span and method, plus the product-specific run-in requirement that was followed.
- Groove gauge result, diameters and their basis, belt fit, alignment result, shaft runout, and centre-distance stability.
- Bearing, shaft, mount, take-up, idler, guard, and ventilation condition.
- Driver and driven speeds, actual power or torque, start method, process load, service factor, and the rating calculation.
- Contaminant and its source, exact product compatibility evidence, the approved cleaning method, and the leak correction.
- Confirmed cause, corrective action, replacement specification, the guarded test result, and the post-correction evidence compared against the original symptom under a controlled equivalent condition.
Treat sound as an operating symptom rather than a verdict. Keep squeal, chirp, slip, heat and power loss distinct, and choose a correction from confirmed evidence. Compare the authorized guarded test with the original record under safe, comparable conditions. Persistent or unexplained symptoms require further diagnosis; a quieter drive alone does not prove the fault is resolved.
Key Takeaway
Why does an industrial V-belt squeal?
A squeal is an observation, not a diagnosis. Squeal, chirp, slip, heat and power loss have several possible causes. Confirm them through safe operating readings, verified isolation, measured tension, groove, alignment, contamination and load checks, and the exact belt and drive data.
Need help reviewing a noisy or slipping drive? See V-Belt and Cogged V-Belt, or contact SQUAREROPE with the measurements and operating record.
