V-Belt Preventive Maintenance: Build a Risk-Based Inspection Plan

A maintenance plan should find changing conditions early without exposing people to the drive or replacing serviceable belts by calendar alone. It needs three layers: safe observations during normal rounds, event-triggered inspections, and planned shutdown inspections whose scope and frequency match the exact belt system and failure consequence.

Set intervals from risk and product instructions

Begin with the current machine OEM and exact belt-family instructions. Set each task from drive design, alignment and tension requirements, duty, environment, speed, load, starts and stops, temperature, equipment criticality, access, failure consequence, event history, condition trends, and the effectiveness of prior corrections; then revise it only from documented evidence.

Keep the three maintenance layers separate. Operating rounds watch for changes without opening the guard, abnormal events trigger an appropriate response, and planned isolated inspections examine the drive at a risk-based interval. Where it applies, OSHA 29 CFR 1910.147 is a United States federal hazardous-energy-control reference; its procedure inspection is a separate safety-program audit and must not substitute for a mechanical drive inspection.

Use events and condition trends—not dates alone

A drive or process change can alter the required profile, rating, or geometry. Revalidate the application with the V-belt selection guide before returning the drive to service.

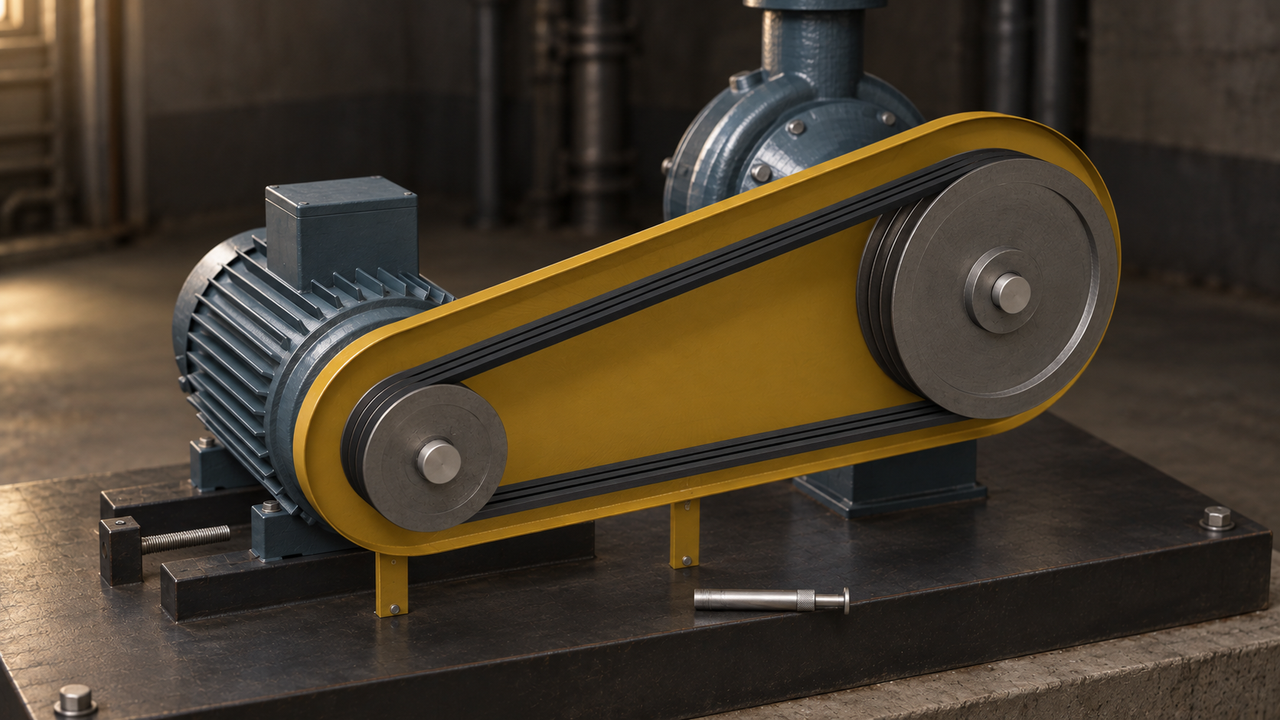

Observe the guarded drive during normal rounds

From outside the intact guard, look and listen for a change from the established baseline: unusual vibration, squeal, chirp, rubbing or grinding; irregular belt motion visible through approved openings; loose or damaged guarding; debris blocking ventilation; belt dust; or oil, grease, water, or process contamination. Use approved remote or fixed instruments where the site procedure permits them.

Do not touch the guard to judge vibration, reach through openings, aim a handheld instrument inside an unsafe boundary, or run without the guard for a “quick look.” An abnormal observation is a trigger to stop and isolate the machine under the site procedure before investigation.

Use a complete safe-work gate for hands-on inspection

A hands-on inspection begins only after authorized personnel have identified all energy sources, isolated and locked or tagged them, dissipated or restrained stored energy and possible reaccumulation, verified the isolation, and removed the guard under the approved procedure. The task plan must also cover gravity, pressure, spring force, fan windmilling, hot surfaces, automatic starts, and adjacent equipment.

Inspect the belt around its full circumference for cracking, fraying, glazing or hardening, unusual wear, contamination, swelling, material loss, deformation, bottoming, or turnover evidence. If approved manual rotation is needed, turn the appropriate pulley with the specified tool and risk controls; never pull the belt or place fingers near a nip point. Inspect sheave grooves with the correct gauge, plus alignment, runout, shafts, bearings, mounts, take-up, leaks, guard clearance, and earthing where required.

When wear or damage may depend on belt architecture, use the V-belt construction reference to identify the layers and features involved before assigning a cause.

Run the preventive-maintenance cycle

Use this repeatable sequence for every drive:

1. Create an asset record with the machine, drive drawing, exact belt family and marking, sheaves, speeds, load, environment, criticality, safety procedure, and responsible roles.
2. Set provisional operating-round, event-triggered, and shutdown-inspection tasks from OEM and belt-maker instructions plus the consequence of failure.
3. During a guarded operating round, record only safe observations and instrument trends; treat any new abnormality as an escalation trigger.
4. Before hands-on work, execute the complete site energy-control procedure, verify de-energization, place components in a safe state, and remove the guard only afterward.
5. Inspect the belt or maker-specified set, sheaves, alignment, runout, shafts, bearings, mounts, take-up, leaks, environment, grounding, and guard condition using approved methods.
6. Measure tension with the calibrated method and exact current target for that belt, drive geometry, and load; never use feel, visual equality, or a universal deflection rule.
7. Correct the confirmed cause, replace rejected components and any complete multiple-belt set only when the governing instructions require it, torque hardware to OEM values, recheck alignment and tension, and reinstall the compliant guard.
8. Clear tools and personnel, restore energy only under the site procedure, perform a guarded controlled test, record results, and revise the next interval from evidence.

For the isolated alignment, tensioning, guarding, and controlled-start sequence, follow the V-belt installation guide.

Make the maintenance record actionable

Keep enough information to identify change, diagnose repeat failures, and audit decisions:

• Asset ID, driver and driven machine, drive drawing, guard and energy-control procedure reference.
• Belt manufacturer, exact family, full marking, profile, length, construction, material and quantity or matched-set rule.
• Operating power or torque, speeds, starts, hours, shock, temperature, environment, process changes and failure consequence.
• Inspection date and trigger, operating or isolated state, authorized personnel, permit or procedure reference, and source-document revisions.
• Instrument, method, calibration status, and observations or measured values with their exact units: tension, span, alignment, vibration, temperature, runout, groove wear, and contamination.
• Defect location and pattern, photographs where useful, probable cause, corrective action, removed-part identification and disposition.
• Guard restoration, hardware torque, controlled-test result, any product-specific post-installation task, and responsible person.
• Next inspection date or trigger, reason for the interval, escalation threshold, approver and required engineering follow-up.

Control replacement sets and spare-belt storage

For a multiple-V-belt drive, confirm the exact belt identity and apply the maker-defined matching and replacement rule for that system. Do not infer a universal whole-set replacement or mixing rule. Quarantine removed parts when failure analysis is needed, and do not install a spare merely because its nominal marking looks similar.

Store spares to the exact maker instructions. Use ISO 2230:2026 as a pre-circulation framework for inspection, recording, packaging, and storage of rubber products; it does not supply a universal product age, stock-rotation rule, or bend limit. Record receipt and identification details where applicable, storage condition, inspections, and disposition.

Escalate an unsafe state or guard or energy-control concern to the site safety authority; uncertain identity, target, method, or product instructions to the OEM or product technical authority; and repeated or worsening evidence or changed service to qualified diagnosis or engineering review. Never turn unresolved uncertainty into automatic replacement or a longer interval. Keep the plan as a controlled feedback loop: protect every hands-on task, record comparable measurements, and adjust only when the evidence and approval change.
