Hex Belt
SQUAREROPE® hexagonal drive belts are specially designed for meandering conveyor belts with repeated bends. Both sides of the belt can be driven and the high strength polyester fiber core maintains a constant length and resistance to fatigue.SQUAREROPE® hexagonal drive belts are particularly suitable for applications with high loads, such as rice mills, stone crushers, textile and printing machines.
Engineered for Performance.
Designed for flexible transmission with repetitive bending
High‑strength polyester fiber core
Low thermal effect
Highly flexible double‑sided adhesive composite

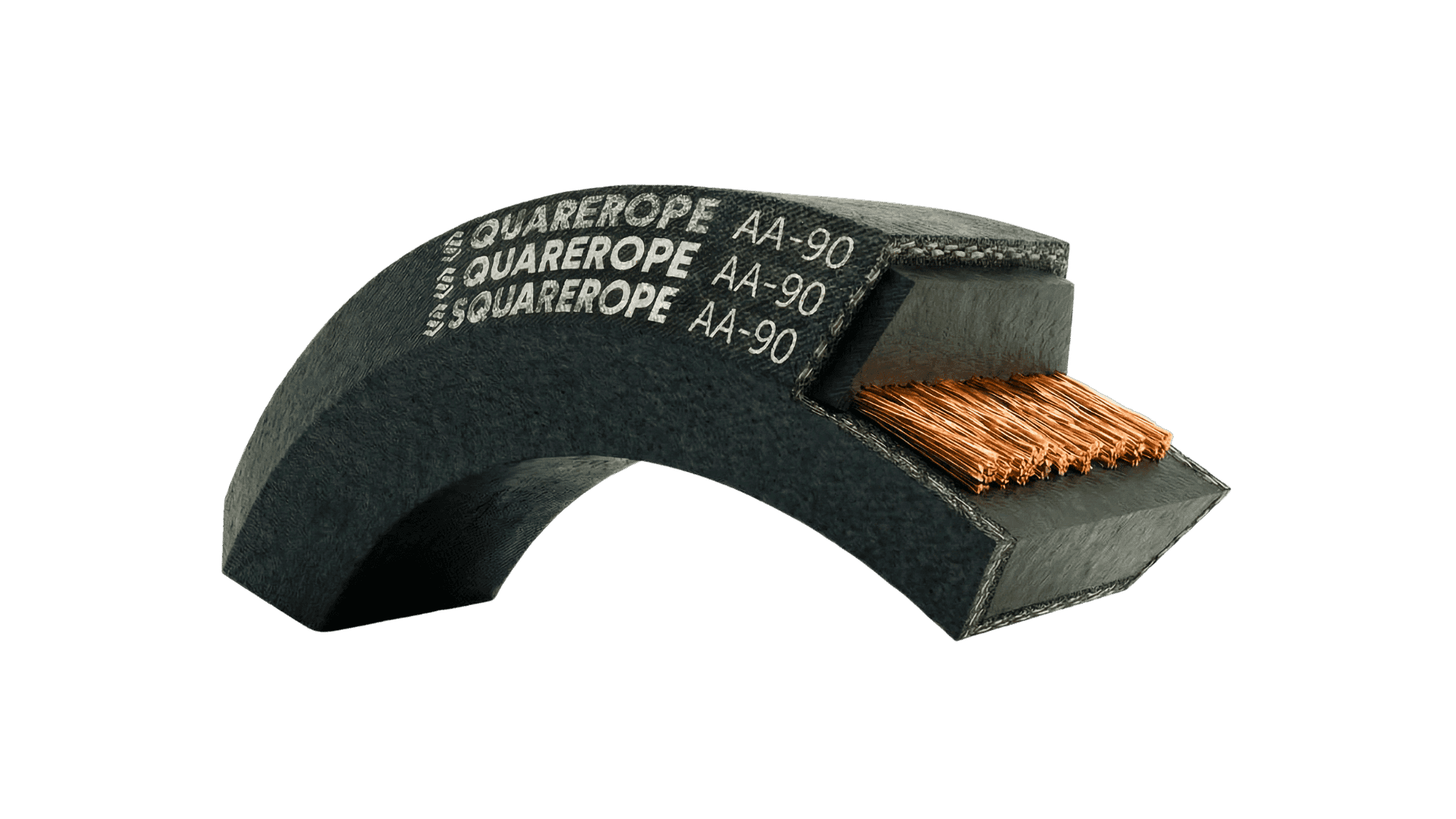

Internal Structure.
Detailed breakdown of the reinforcement layers and materials used. Designed for maximum durability and efficiency in every rotation.
Also written: BB90 · BB 90
Belt Labeling.
SQUAREROPE® Hexagonal Drive Belt's product number labeling includes type and length: 1) Belt type: AA, BB, and CC represent the three different cross-section shapes and sizes respectively 2) Belt length: The pitch length of the belt is represented by a number in inches.
Belt Specifications
SQUAREROPE® hexagonal belts are manufactured according to the international standards DIN 7722 and ISO 5289.
Cross Section | Belt Width bo(mm) | Belt Thickness h(mm) | Length Range Ld(mm) | Min Pulley Dia ddmin(mm) | Quote |
|---|---|---|---|---|---|
| AA | 13 | 10 | 1829-5334 | 80 | AA |
| BB | 17 | 13 | 2108-3658 | 112 | BB |
| CC | 22 | 17 | 2184-5690 | 200 | CC |
Hover over the table to verify dimensions.
No catalog available for this product.
Frequently Asked Questions
A Hex Belt, or Double V-Belt, has a hexagonal cross-section: the top and the bottom are both V-shaped working faces, so either side of the belt can drive a pulley. It is designed for reverse-bend serpentine drives, where the belt runs around several pulleys in one plane and bends in both directions.
Engineered for Performance.
Designed for flexible transmission with repetitive bending
High‑strength polyester fiber core
Low thermal effect
Highly flexible double‑sided adhesive composite
Internal Structure.
Detailed breakdown of the reinforcement layers and materials used. Designed for maximum durability and efficiency in every rotation.
Also written: BB90 · BB 90
Belt Labeling.
SQUAREROPE® Hexagonal Drive Belt's product number labeling includes type and length: 1) Belt type: AA, BB, and CC represent the three different cross-section shapes and sizes respectively 2) Belt length: The pitch length of the belt is represented by a number in inches.
Belt Specifications
SQUAREROPE® hexagonal belts are manufactured according to the international standards DIN 7722 and ISO 5289.
Cross Section | Belt Width bo(mm) | Belt Thickness h(mm) | Length Range Ld(mm) | Min Pulley Dia ddmin(mm) | Quote |
|---|---|---|---|---|---|
| AA | 13 | 10 | 1829-5334 | 80 | AA |
| BB | 17 | 13 | 2108-3658 | 112 | BB |
| CC | 22 | 17 | 2184-5690 | 200 | CC |
Hover over the table to verify dimensions.
No catalog available for this product.
Frequently Asked Questions
A Hex Belt, or Double V-Belt, has a hexagonal cross-section: the top and the bottom are both V-shaped working faces, so either side of the belt can drive a pulley. It is designed for reverse-bend serpentine drives, where the belt runs around several pulleys in one plane and bends in both directions.
Need help specifying Hex Belt?
Share your operating conditions, dimensions, and quantity. Our team will help confirm the right belt construction.
