V-Belt Preventive Maintenance Schedule: A 12-Month Practical Guide
Belt failures don't announce themselves. A belt that looks fine at shutdown can crack, turn over, or snap by next startup — often because of damage that was invisible to a quick visual check. The difference between a drive that runs for years and one that fails catastrophically is almost always a structured inspection and tensioning program.
This guide gives you a practical monthly, quarterly, and annual inspection schedule for industrial V-belt drives. It's written for maintenance technicians and plant engineers who need actionable steps, not just general advice.
Before You Start: Lockout/Tagout
Every belt inspection happens with the drive isolated. No exceptions. Lock out the motor supply at the disconnect before removing guards. Verify zero energy with a tester. This is non-negotiable.
Monthly Inspection Items
A monthly check takes 15–30 minutes per drive and catches the majority of developing problems before they cause failure.
1. Visual Belt Surface Inspection With guards removed, examine the belt's outer surface across its full length. Look for:
- Surface cracks (top or sidewall) — UV, ozone, or chemical attack
- Under-cord cracks on the inner surface (feel for stiffness/brittleness)
- Glazing (shiny, hardened sidewalls from chronic under-tension slip)
- Edge wear or uneven sidewall wear
- Swelling, softening, or gummy texture (oil or chemical contamination)
- Belt dust accumulation beneath the drive
Any of these findings requires action before the next operating shift.
2. Belt Seating Check Verify the belt sits fully in the pulley grooves — not riding on top of the groove crowns. A belt that rides high has lost grip surface area and is slipping chronically.
3. Tension Check Measure belt tension with a calibrated tension gauge (force/deflection method or sonic tension meter). Compare against manufacturer deflection tables for your specific belt profile and span length.
A few practical notes on tension:
- First-time installation tension should be 1.4–1.5× normal operating tension (to account for immediate run-in tension loss)
Treat tension loss and age hardening as inspection triggers rather than fixed-life promises. Check tension after run-in, keep monthly records, and replace belts when inspection evidence shows cracking, glazing, repeated tension loss, or supplier shelf-life limits.
- Check tension after the first 24–48 hours of run-in, then at monthly intervals
4. Guard and Mounting Fasteners Verify guard integrity, mounting bolt tightness, and motor base bolts. Vibration loosens fasteners.
5. Drive Area Cleanliness Remove accumulated dust, chaff, or debris from the drive area. Foreign material in pulley grooves accelerates wear.
Quarterly Inspection Items
Quarterly checks add pulley condition assessment and alignment verification to the monthly routine.
1. Full Alignment Check Misalignment is the second-leading cause of premature belt failure (after tension problems). Check both:
- **Parallel alignment:** Use a straightedge or laser alignment tool across both pulley faces. Maximum acceptable offset varies by belt type and speed — consult manufacturer tables or use a 0.5mm feeler gauge at the rim.
- **Angular alignment:** All pulley faces must be coplanar. A pulley face that tilts even slightly causes one-sided belt wear and accelerated edge damage.
Note: Some HVAC belt manufacturers design their products with ±3° angular misalignment tolerance — wider than standard industry practice — because HVAC motor pulleys are frequently field-adjusted without precision alignment. For general industrial belt types, standard alignment tolerances apply.
2. Pulley Groove Wear Assessment Worn sheave grooves are the most expensive hidden cost in belt drives. Measure groove depth and profile with a groove gauge or vernier caliper.
Signs that pulleys need replacement:
- Groove walls polished smooth (belt has no grip surface)
- Groove width exceeds belt section specification (belt rides high)
- Groove depth reduced by more than 0.5mm from new
- Visible groove wall wear ridges or grooving
Never fit new belts onto worn pulleys. New belts slip on glazed grooves, squeal, overheat, and fail prematurely — and you'll blame the belt, not the pulley.
3. Belt Condition Scoring Rate each belt on a simple 1–5 scale:
- 1 = Failed / replace immediately
- 2 = Significant wear / schedule replacement within 2 weeks
- 3 = Moderate wear / increase inspection frequency
- 4 = Minor wear / monitor
- 5 = Good condition / no action
Record scores in your maintenance log. A belt declining from 4 to 3 over two consecutive quarters tells you it's approaching end of life.
4. Bearing Condition Adjacent to Belt Drive Hand-spin driven and driver bearings. Listen and feel for roughness, binding, or unexpected noise. Belt-driven equipment often sees accelerated bearing wear due to alignment-induced side loads.
Annual Inspection Items
Annual checks go deeper — full drive assessment, documentation review, and preventive replacements.
1. Complete Drive Disassembly and Inspection Remove belts and inspect the full drive train:
- All pulley surfaces (rust, pitting, groove deformation)
- Keyways, set screws, taper-lock bushings (wear, fretting)
- Motor and driven machine shaft alignment (re-check after thermal cycling)
- Belt idler and take-up devices (function and condition)
- Belts scheduled for replacement (see below)
2. Belt Replacement Assessment Belts should be replaced based on condition and operating hours, not calendar time alone. However, as a general annual guideline:
Treat tension loss and age hardening as inspection triggers rather than fixed-life promises. Check tension after run-in, keep monthly records, and replace belts when inspection evidence shows cracking, glazing, repeated tension loss, or supplier shelf-life limits.
- Belts showing any cracking, glazing, or dimensional change should be replaced at the annual service
- In multi-belt drives, always replace the entire matched set — never mix old and new belts (different stretch rates cause load imbalance)
3. Replace All Belts Simultaneously on Multi-Belt Drives This cannot be overstated. If one belt fails in a multi-belt drive, all belts in that set are at equivalent service life. Replacing only the failed belt forces the new belt to carry disproportionate load while the older remaining belts have stretched differently. The new belt fails fast. Replace the set.
4. Torque and Fastener Check Re-torque all mechanical fasteners after thermal cycling. Use calibrated torque wrenches and follow OEM specifications for flange bolts, pulley set screws, motor mounts, and base plates.
5. Maintenance Log Review Review 12 months of inspection records. Look for:
- Recurring tension loss (may indicate a systemic alignment or bearing issue)
- Belts replaced repeatedly in the same position (may indicate overload or wrong belt type)
- Vibration data if you have condition monitoring (unusual vibration always precedes mechanical failure)
Storage Standards: The Belts You Haven't Installed Yet
Unused belts degrade on the shelf. Proper storage extends shelf life significantly.
- **Store belts flat** or on original packaging spools. Coiling tight bends creates internal cord stress.
- **Avoid heat sources, direct sunlight, and UV exposure.** Ozone-generating equipment (motors, fluorescent lights at close range) accelerates rubber aging.
**Keep dry.** Store belts in a clean, dry area and avoid water, condensation, and chemical exposure that can affect rubber and adhesion systems.
- **Avoid petroleum solvents, solvents, and cleaning fluids** in storage areas — vapor contamination can swell stored belts.
**First-in, first-out inventory rotation.** Use older stock first and follow the supplier shelf-life guidance for the exact belt series and storage conditions.
- **Inspect incoming belts** before accepting delivery. Reject any belt with surface cracks, deformation, or damaged packaging.
Quick-Reference Maintenance Schedule
| Interval | Actions | |---|---| | Monthly | Visual inspection, tension check, seating check, guard inspection, clean drive area | | Quarterly | Full alignment check, pulley groove measurement, belt condition scoring, bearing hand-spin check | | Annual | Full drive disassembly, pulley replacement assessment, full belt replacement evaluation, torque verification, 12-month log review |
The "Feel" Method Is Not Reliable
Industry testing of over 200 experienced maintenance personnel found that only 1% could correctly tension a belt by feel. Most were estimating between 7% and 50% of correct tension. Invest in a proper tension gauge or sonic tension meter — the cost is a fraction of one unplanned downtime event.
When to Call for Technical Support
Some situations require belt manufacturer or specialist input:
- Belts failing repeatedly in the same application despite correct tension and alignment
- Unknown vibration sources on belt drives (balance, resonance, critical speed issues)
- High-temperature or chemically aggressive environments requiring compound evaluation
- Custom OEM specifications for non-standard applications
Quality regional suppliers support ASEAN industrial buyers with application review, belt selection, and drive assessment. Contact your regional distributor for support.
Key Takeaway
What should a V-belt maintenance schedule include?
A useful schedule combines monthly visual and tension checks, quarterly alignment and groove checks, annual drive review, and first-in-first-out spare belt storage.

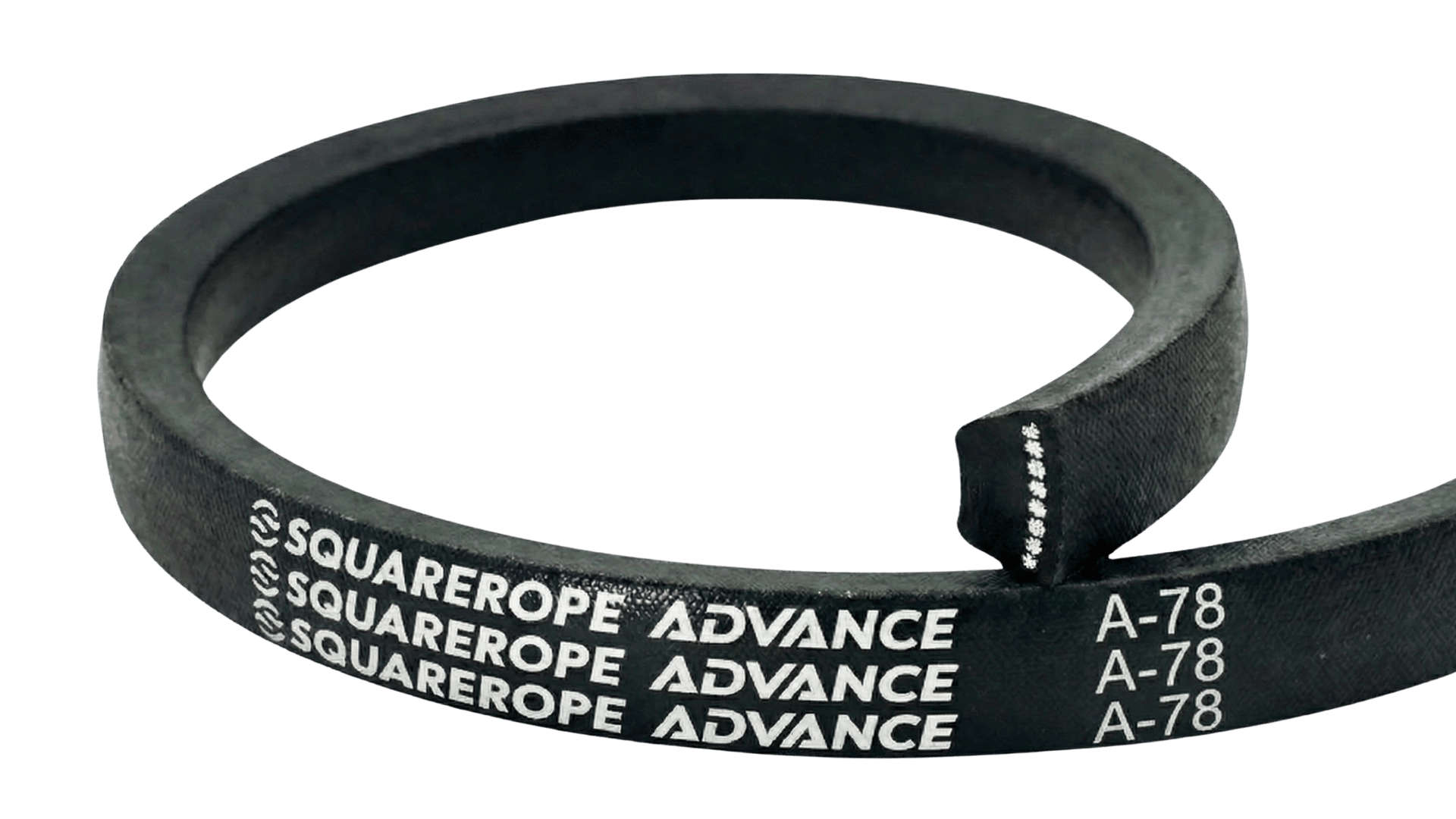

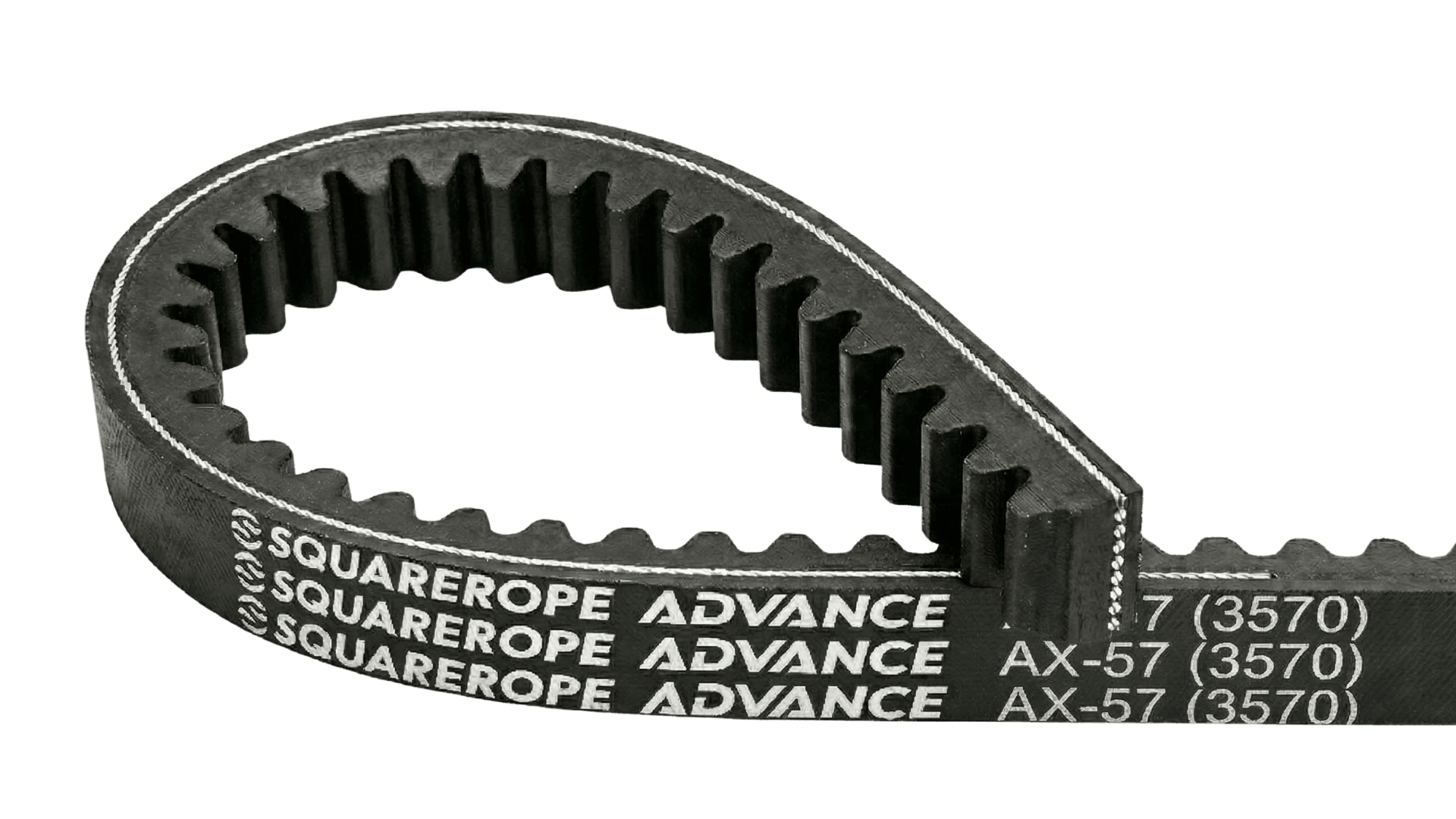

Need help matching the right belt? Review V-Belt and Cogged V-Belt (Non-Cogged Available), or contact SQUAREROPE for application support.
